Roderick Grant
Posts: 10575
Joined: Wed Mar 29, 2006 7:48 am

Post by Roderick Grant »

Another house that eschewed the red floor is Fawcett. Mrs. Fawcett said she didn't want red floors because the brown dust that blows all over the area would inevitably be tracked into the house, and a brown floor would be easier to keep at least appearing to be clean. The wood also seems somewhat lighter than usual. For the lightest wood, see the Walton House in "California Romanza," pp 98-103, and FLW MCM, 306-309.

SDR
Posts: 20205
Joined: Sat Jun 17, 2006 11:33 pm
Location: San Francisco

Post by SDR »

The woodwork at Fredrick is stained; staining is typically done to achieve a desired color and to make the various boards more uniform in hue and value.

The stain color used here reminds me of some Heritage Henredon pieces I've come across recently:

http://www.icollector.com/Frank-Lloyd-W ... r_i8513431

http://www.icollector.com/Frank-Lloyd-W ... r_i8513437

SDR

Sequoia
Posts: 62
Joined: Thu Oct 20, 2011 3:31 pm

Post by Sequoia »

JChoate to answer your question regarding the wood, Phillipine Mahogany and Rosewood are used throughout . This and many more questions can be answered by reading the details section in the Baird & Warner site that peterm linked on May 17 2016. It certainly answered unasked questions from myself.

JChoate
Posts: 995
Joined: Thu Feb 04, 2016 4:29 pm
Location: Atlanta
Contact:

Post by JChoate »

I went back and read the realtor's description on the Baird Warner website. The Phillipine mahogany makes sense with its uniform grain and exterior decay resistance. The Rosewood sounded far fetched, but then I spotted some on a wall in one of the bathroom photos.

The statement from the realtor that surprised me most, however, was the promise of "drawings from all of the built in furniture & cabinets by famous master woodsman George Nakashima". If there were any Nakashima built-in components in those photos I could not detect them.

SDR
Posts: 20205
Joined: Sat Jun 17, 2006 11:33 pm
Location: San Francisco

Post by SDR »

Nor did I. The misused term "woodsman" is perhaps an indication of questionable scholarship in that regard ?

It's interesting that this house is so far off the Wrightian radar. It does not appear at all in "FLW MCM," for instance.

SDR

Paul Ringstrom
Posts: 4400
Joined: Sat Sep 17, 2005 4:53 pm
Location: Mason City, IA

Post by Paul Ringstrom »

SOLD, in three days on the market. Somebody knew what they wanted.
Owner of the G. Curtis Yelland House (1910), by Wm. Drummond

Paul Ringstrom
Posts: 4400
Joined: Sat Sep 17, 2005 4:53 pm
Location: Mason City, IA

Post by Paul Ringstrom »

That "PLAY" area could make a nice home office.
Owner of the G. Curtis Yelland House (1910), by Wm. Drummond

peterm
Posts: 6290
Joined: Thu Mar 13, 2008 10:27 am
Location: Chicago, Il.---Oskaloosa, Ia.

Post by peterm »

http://chicago.curbed.com/2016/6/17/119 ... house-1958

It's a bit misleading when said that it sold within three days; it was listed here with Wright on the Market for months...

SDR
Posts: 20205
Joined: Sat Jun 17, 2006 11:33 pm
Location: San Francisco

Post by SDR »

That could almost be a gravel drive, in the exterior photo. I think virtually every Wright residence should sport a crushed-rock drive -- or entrance court, at least. Maybe a long driveway could be stone pavers or cobbles, with matching crushed stone. The image is of a stream leading to a pool, partially surrounded by small shrubbery overhanging the "water," out of which the house arises . . .

SDR

outside in
Posts: 1272
Joined: Sat Jul 29, 2006 9:02 pm
Location: chicago

Post by outside in »

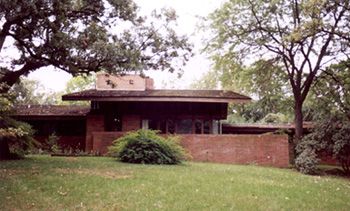

easy to see the drooping roof eaves in this photo:

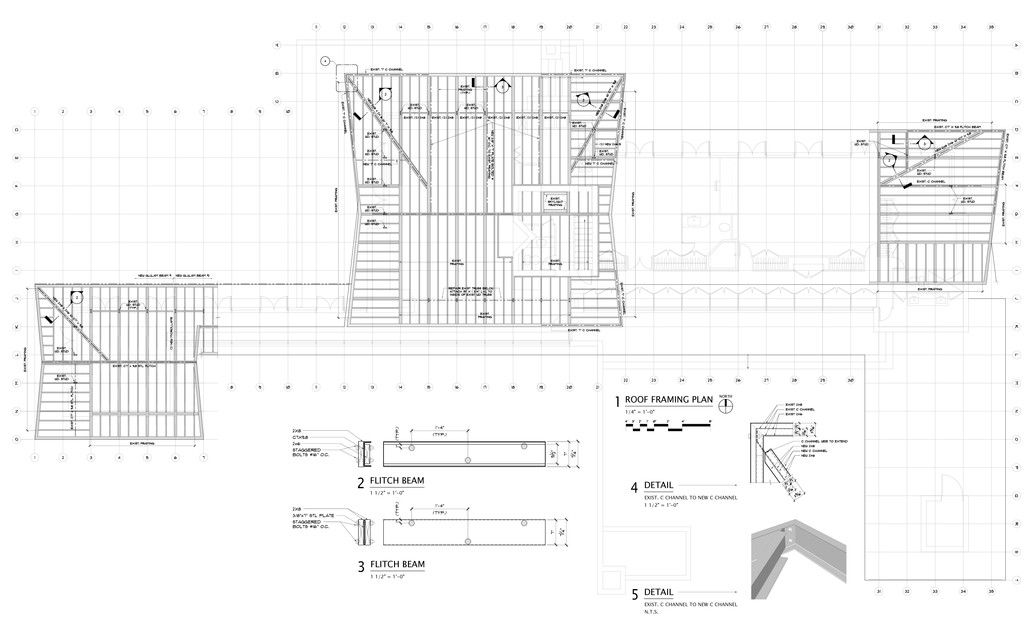

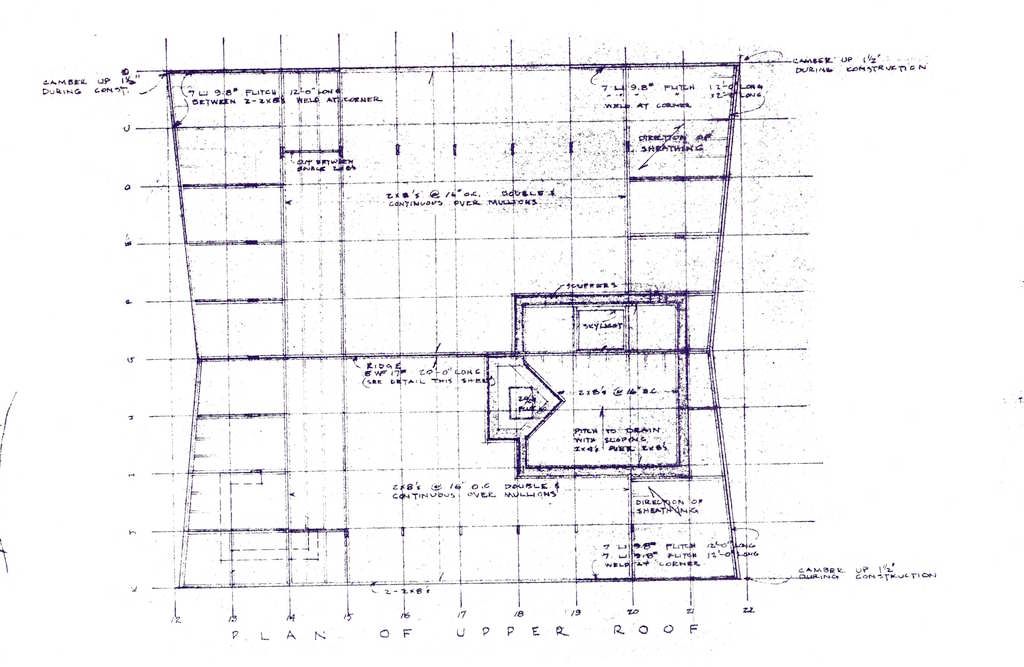

Looking at the original framing plan, the person responsible for the framing used "c" channels at the corners, but the channels only had 4 feet of backspan for an 8 ft. cantilever - but were very specific about running the sheathing diagonally from the corner to create a tight skin for support.


Why FLW avoided diagonals in framing is beyond me, but we decided to fix it as follows:

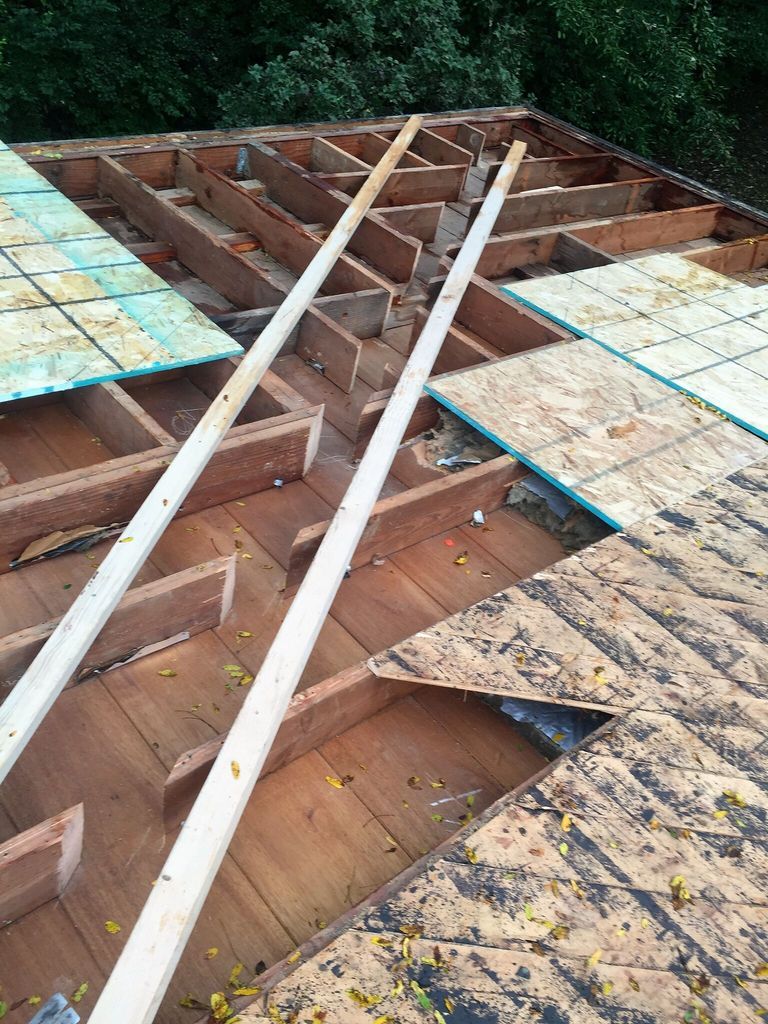

Cut through the existing framing to install steel:

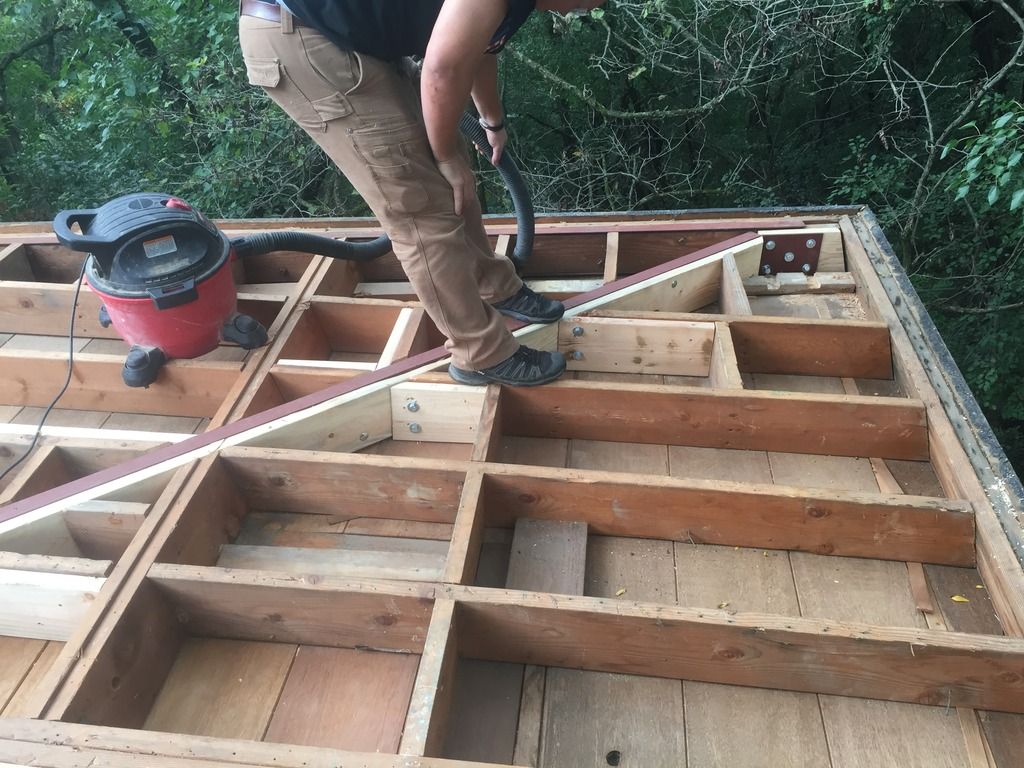

New flitch beam:


JChoate
Posts: 995
Joined: Thu Feb 04, 2016 4:29 pm
Location: Atlanta
Contact:

Post by JChoate »

Very interesting & brilliant solution. Thank you for sharing this.

outside in
Posts: 1272
Joined: Sat Jul 29, 2006 9:02 pm
Location: chicago

Post by outside in »

Exterior woodwork is all Philippine Mahogany. The original owner used a semi-transparent stain that covered the grain. Wright's original specifications called out a clear stain.



JChoate
Posts: 995
Joined: Thu Feb 04, 2016 4:29 pm
Location: Atlanta
Contact:

Post by JChoate »

beautiful restoration.
What's going on with the butt glazed corner window in the last photo?

outside in
Posts: 1272
Joined: Sat Jul 29, 2006 9:02 pm
Location: chicago

Post by outside in »

the single-glazed corner glass was replaced (badly) with insulating glass - we'll be switching it back in the spring. Interestingly, most of the original glass in the house is narrow profile (1/2) inch insulating glass.

JChoate
Posts: 995
Joined: Thu Feb 04, 2016 4:29 pm
Location: Atlanta
Contact:

Post by JChoate »

I live in an apprentice-designed Usonian-esque house with 9 butt-glazed corner windows that are all done with 5/8" insulated glass with a bead of black silicone sealant where they intersect. Not perfect up close, but from across the yard you can't detect it.
In the northern climes are there condensation issues with monolithic (single pane) corner glazing?
